How to use the content aware pen tool in photoshop?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
What Is the Content-Aware Pen Tool in Photoshop?
Before learning how to use the Content Aware Pen Tool in Photoshop, it’s helpful to understand what it does and why it’s useful.
Understanding the Foreground and Background

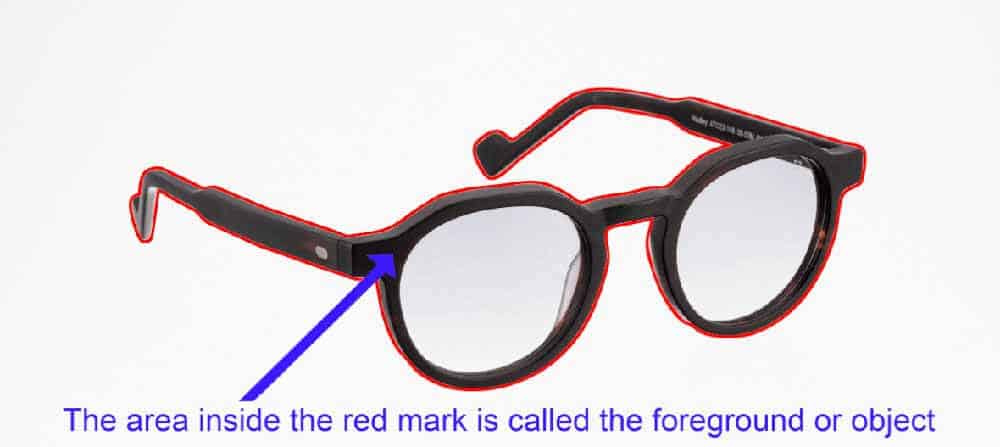

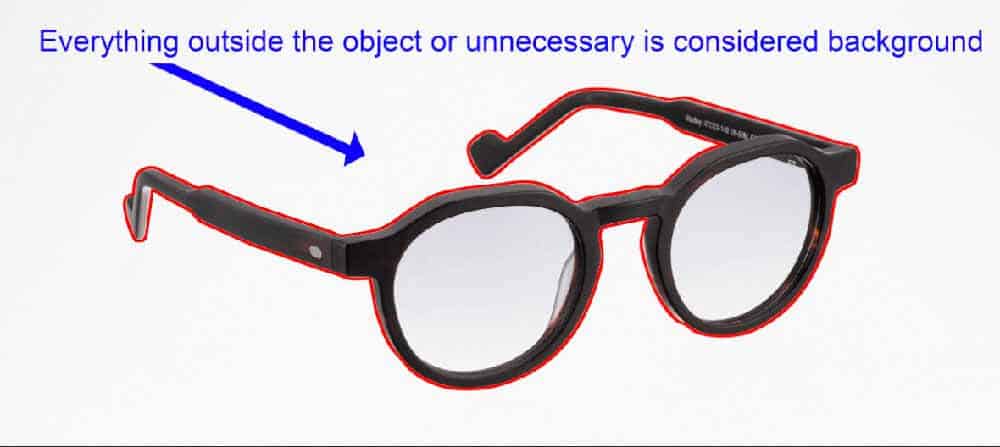

Every image is made up of two key elements: the foreground and the background. The foreground is the main subject that you want to keep, while the background is the area that is often removed, replaced, or edited during the retouching process.
In many photo editing projects, the goal is to separate the subject from its background so that a new background can be added or the existing one can be removed. This is where Photoshop’s selection and path-making tools, including the Content-Aware Pen Tool, become valuable for creating accurate and clean cutouts.
The Importance of the Pen Tool and the Introduction of the Content-Aware Pen Tool
The Pen Tool plays a key role in separating a subject from its background. It allows designers to create precise paths around objects, known as clipping paths. These paths make it possible to remove or replace the background while keeping the subject clean, sharp, and accurately selected.
However, creating a clipping path manually with the Pen Tool can be a time-intensive process. Depending on the complexity of the image, it may take anywhere from 5 to 60 minutes to produce a high-quality result.
If you’re asking, “How do you use the Content Aware Pen Tool in Photoshop?” it’s important to first understand what this tool does.
Introducing the Content-Aware Pen Tool
To make background removal faster and more efficient, Photoshop offers a semi-automated solution called the Content-Aware Pen Tool. By using Adobe’s intelligent content recognition technology, this feature helps detect object edges and trace them more quickly, reducing the time and effort required for precise selections and background removal.
Have a question like “How to use the pen tool in photoshop to delete background?” Simply click on the link and you’ll find the answer in seconds!
Turning On the Content-Aware Tracing Tool in Adobe Photoshop
Before using the Content-Aware Tracing Tool, make sure Photoshop is set up correctly and all the necessary default settings are enabled.
How to Enable and Access the Content-Aware Tracing Tool in Photoshop
Follow these simple steps to enable and start using the Content-Aware Tracing Tool in Adobe Photoshop.

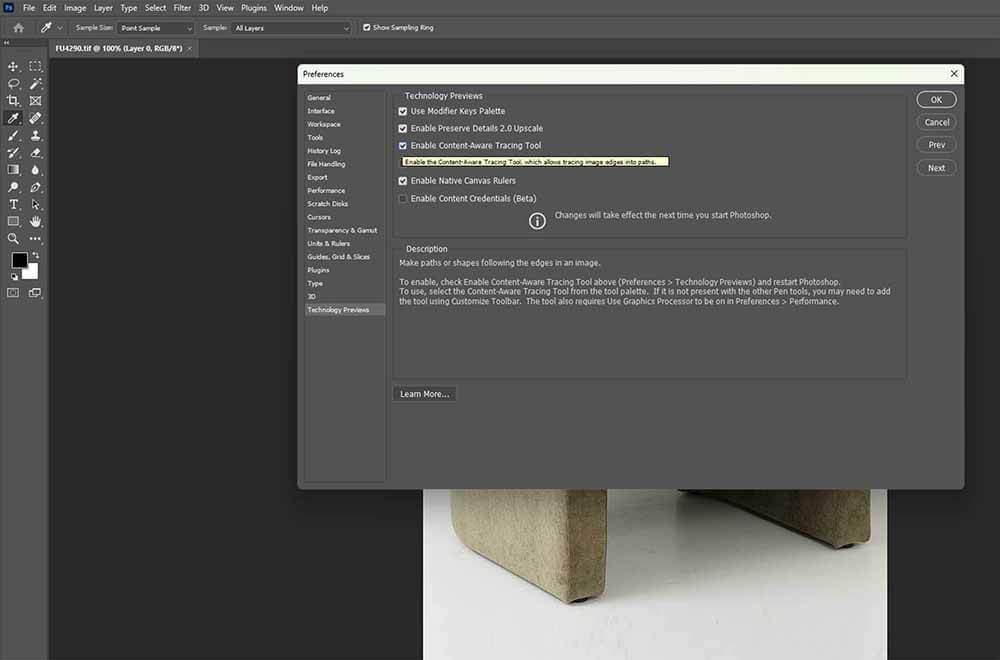

Step 1: Turn On the Content-Aware Tracing Tool
Open Adobe Photoshop.

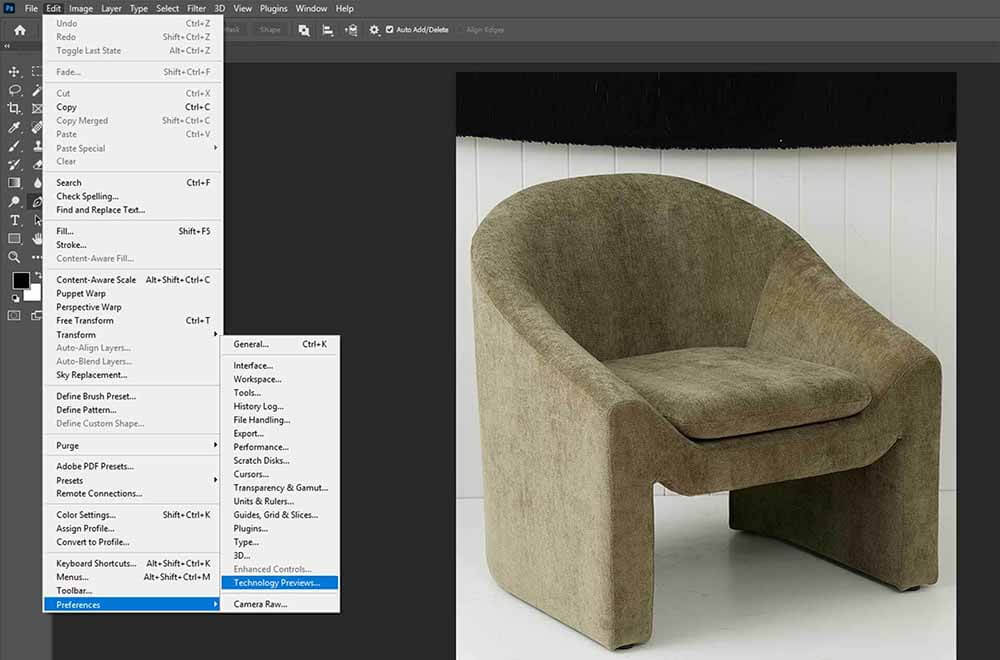

Click Edit from the top menu bar.
Select Preferences, then click Performance.
In the Performance window, choose Technology Previews from the left-hand panel.
Check the box next to Enable Content-Aware Tracing Tool.
Click OK to save your changes.
Step 2: Restart Photoshop
After enabling the feature, close Photoshop completely and reopen the application. This allows the new settings to take effect.

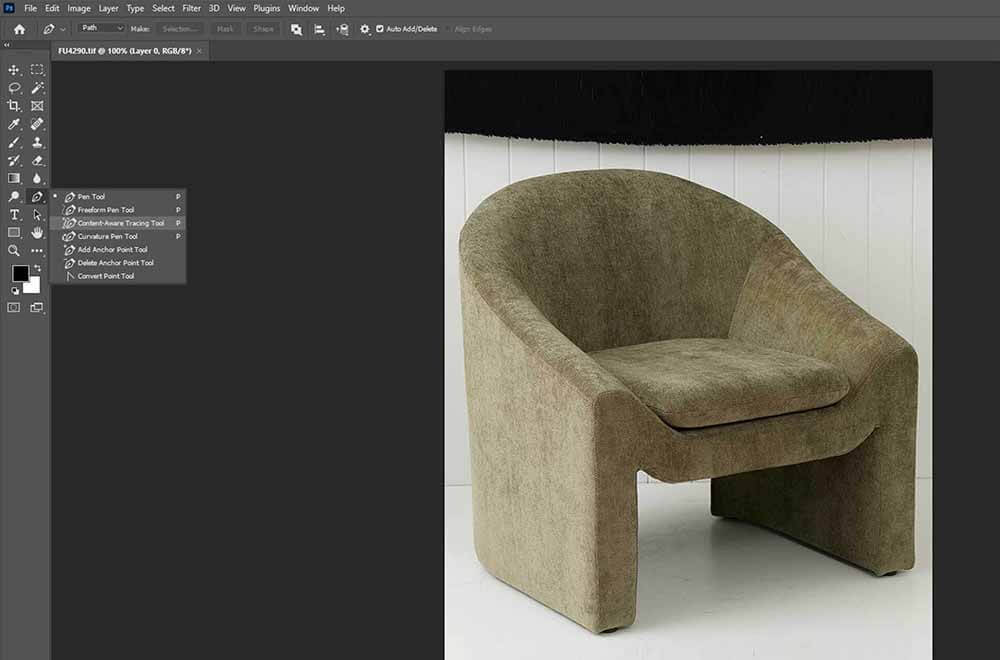

Step 3: Open the Content-Aware Tracing Tool
Locate the Pen Tool in the toolbar.
Right-click (or click and hold) the Pen Tool icon.
From the tool menu that appears, select Content-Aware Tracing Tool.
You’re Ready to Go
Once selected, the Content-Aware Tracing Tool is ready to help you create paths and selections more quickly, making background removal and object tracing much easier.
Using the Content-Aware Pen Tool to Create a Clipping Path in Photoshop
How to Create a Clipping Path Using the Content-Aware Pen Tool
The Content-Aware Pen Tool helps speed up the clipping path process by automatically detecting object edges. Follow these steps to create an accurate path around your subject.
1. Open and Prepare the Image
Open your image in Adobe Photoshop and zoom in as needed. A closer view makes it easier to identify the edges between the subject and the background, resulting in a more accurate path.
2. Start Creating the Path
Select the Content-Aware Pen Tool and position your cursor along the edge of the subject. As you move the cursor between the foreground and background, Photoshop will automatically detect the boundary and display a path preview.
3. Generate the Clipping Path
When the path preview aligns correctly with the edge, click once to place an anchor point. Photoshop will automatically create a path segment based on the detected edge.
Continue moving around the entire subject and placing points where necessary. If the object contains internal cutouts, holes, or transparent areas, trace those sections using the same technique.
Example Workflow:

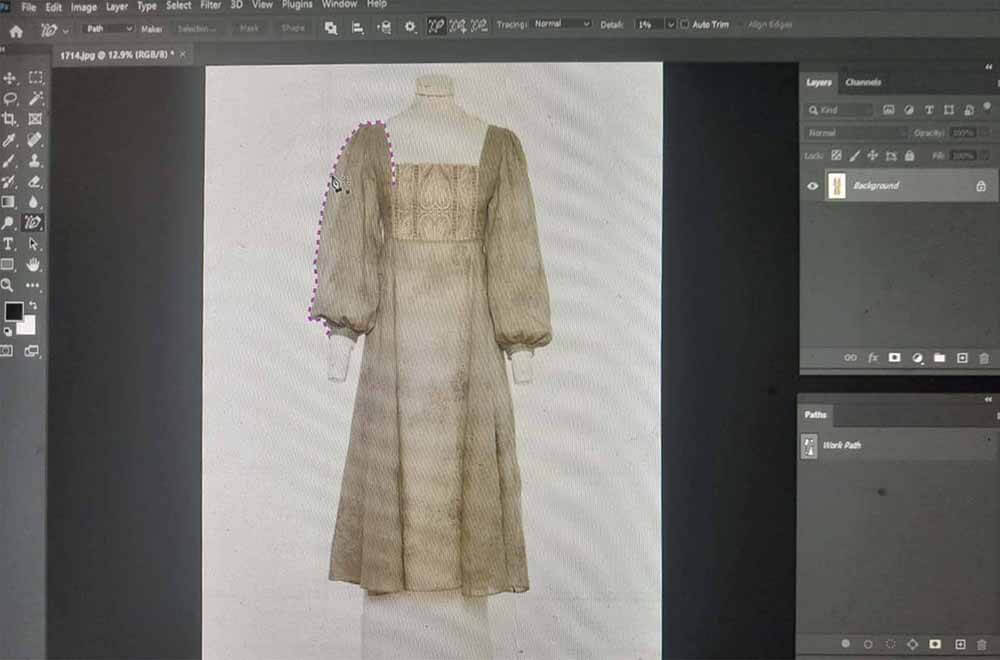

Automatic path indicator appears along the detected edge.

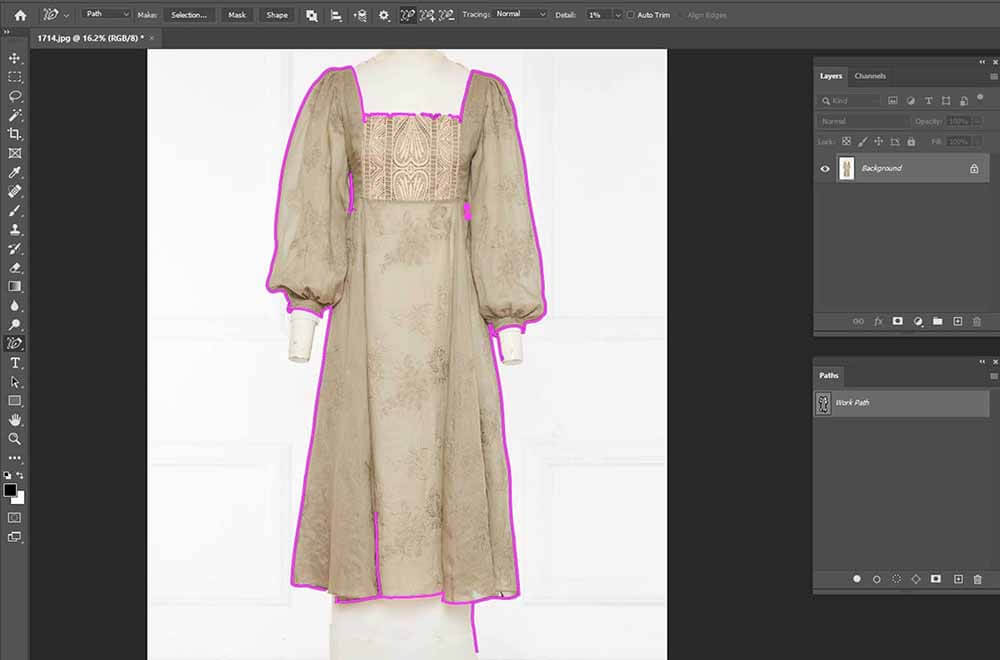

The tool generates the initial path around the subject.
Review and correct any areas that need adjustment.

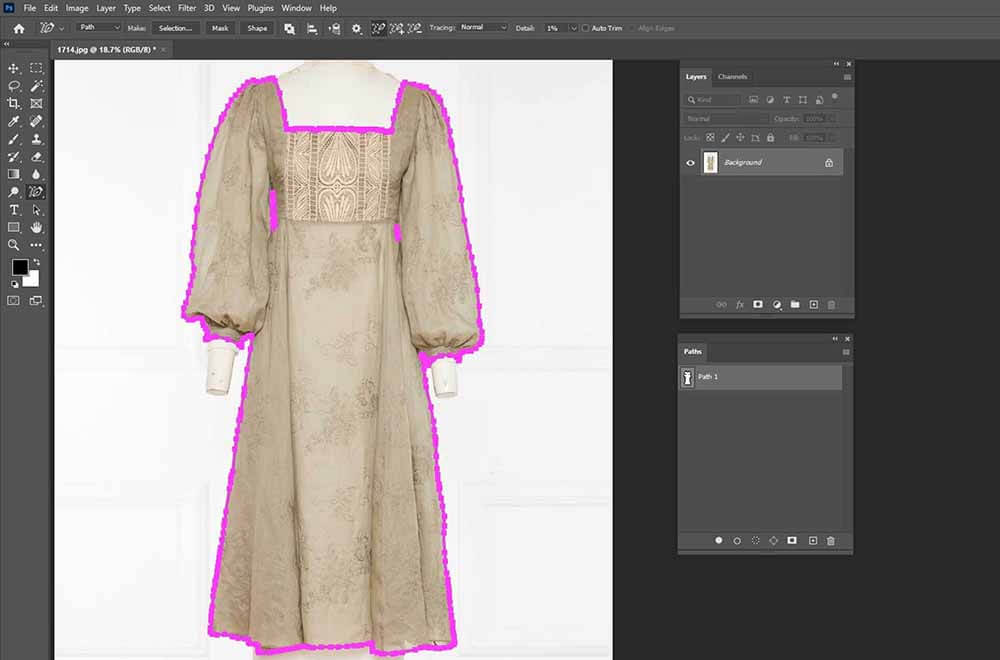

Finalize the completed clipping path.
4. Review and Refine the Path
After tracing the entire object, carefully inspect the path for any inaccuracies. Adjust anchor points and path segments where needed to ensure smooth and precise edges.
5. Finalize the Clipping Path

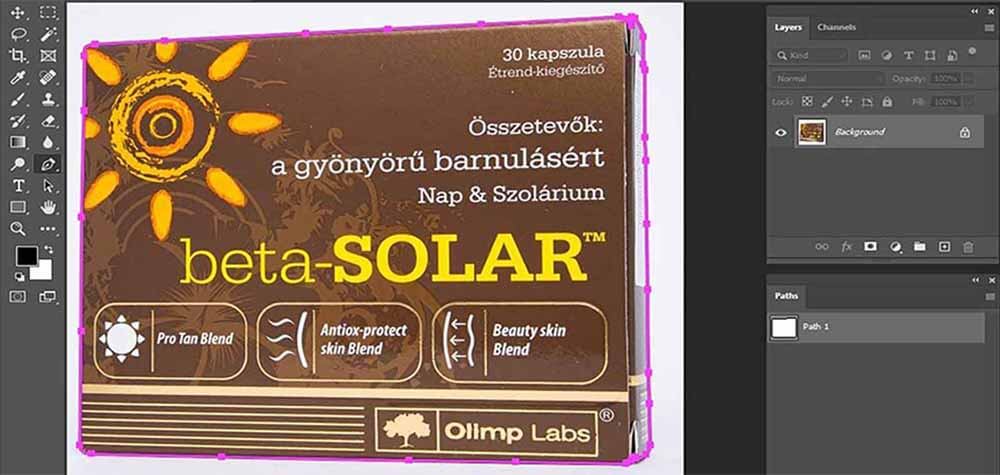

Once all corrections have been made, your clipping path is complete and ready for background removal, image masking, or any other editing task.
Note
Using the Content-Aware Pen Tool can reduce clipping path creation time by up to 50% compared to drawing the entire path manually with the traditional Pen Tool, while still maintaining a high level of accuracy.
